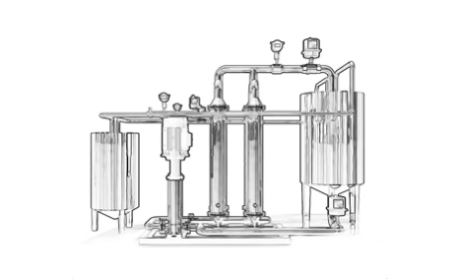

- Model：CM-90
- Process capacity：500~2000L/H
- Membrane element：French original imported ceramic membrane
- Contact material：Material AISI 304, food grade hosepipe
- Material circulation tank：effective volume V=1500L
●It can do the membrane selection according to the size of the molecular
weight and separate the material of 1.4μm-1KD
●It has the advantages like easy and flexible operation, and easy cleaning, etc.

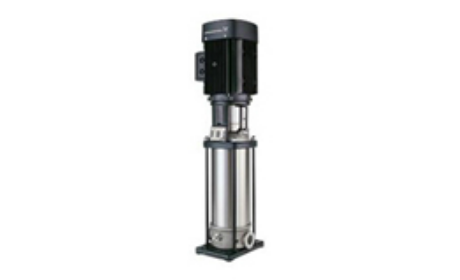

Power Unit
Imported GRUNDFOS pump
Inverter control
With high pressure protection device

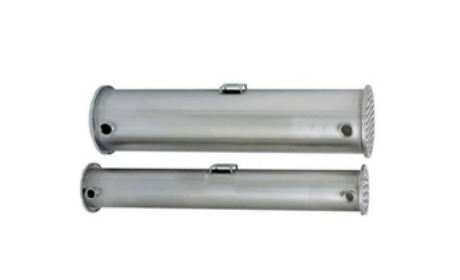

Membrane Shell
PH range：0-14
Working pressure：<95℃
Maximum working pressure：<10bar
Connection type：ANSI flange type connection

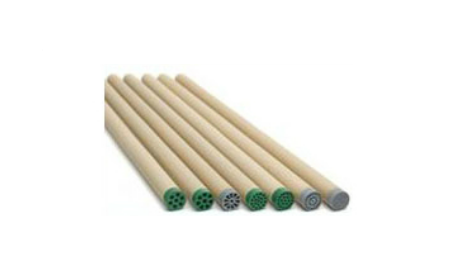

Ceramic Membrane Element
French original imported ceramic membrane
Membrane model ：φ25mm：580/1178mm
Range of application：Microfiltration, ultrafiltration and fine ultrafiltration

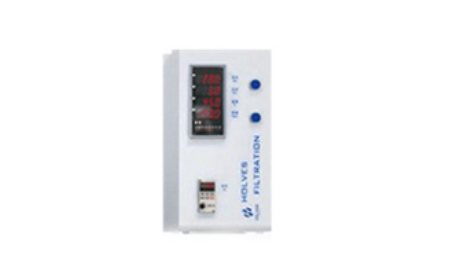

Electrical Control Cabinet
Online monitoring of temperature, pressure and liquid velocity
Pump frequency conversion controller, real-time display speed, frequency
Temperature and pressure preset alarm
Material Standard
Contact material part: Material AISI 304, food grade hose material circulation
Non-contact material: Material AISI 304, carbon steel + spray paint
Pipeline：Sanitary seamless stainless steel tube
Valve：Food grade health level direct ball valve, diaphragm valve
